Gravity Taken Efficient Warehouse Pallet Flow Racking System For
Fast Stock Rotation
The warehouse pallet flow racking system is designed for fast stock
rotation taking advantage of gravity for pallet storage and
retrieval. As a compact storage solution, the pallet flow rack
system is getting popular for its energy-saving and productivity
improvement. Pallet loads can be stored in inclined rails with
steel galvanized rollers.
In pallet flow racking, pallets will be placed by forklift to the
storage bay on one side and the picking process will happen on the
other side of the bay facilitated by gravity. With these galvanized
rollers, pallet loads can slide down easily and quickly and speed
can be controlled by braking systems. Since pallet loads can move
relatively freely on the conveyors, pallet flow rack can also be
categorized as live storage system.
Pallet Flow Racking System Details
| Rack Name | Gravity-taken pallet flow racking system with fast stock rotation |
| Rack Type | Dynamic flow with semi-automated stock rotation |
| Upright Section | Customized sizes, commonly used sections: 80*60, 90*60, 90*70,
100*70,120*95 |
| Beam Section | Customized sizes, commonly used sections: 80*50/100*50mm |
| Product Material | High Strength Steel/American Standard Steel |
| Load Capacity | Customized load capacity, commonly with 1000/1500kg per pallet load |
| Storage Layer | Customzied, 2-6 Adjustable layers |
| Features | FIFO inventory rotation, fast and efficient stock management |
| Surface finish | Powder coated and galvanized steel for corrosion protection |
Structure Features and Advantages
1. With two entry points in each bay, pallet flow racks follow the
FIFO stock rotation principle.
2. Pallet flow racks are a high-density storage solution offering
up to 15 pallet positions without extra aisles.
3. In gravity-taken pallet flow racks, the material handling speed
and safety have been improved a lot.
4. Safety design elements such as braking systems and pallet
separators are added to this live storage system
5. Upright frames in pallet flow racking can be customized with
different upright sections and pitch distances.
As an environment-friendly storage rack with less energy
consumption, the pallet flow system is reliable and efficient and
can be applied to many different areas and industries, including
food, beverage, pharmaceuticals, chemistry, etc. Applicable to the
food, pharmaceuticals, beverages, and chemical industry.

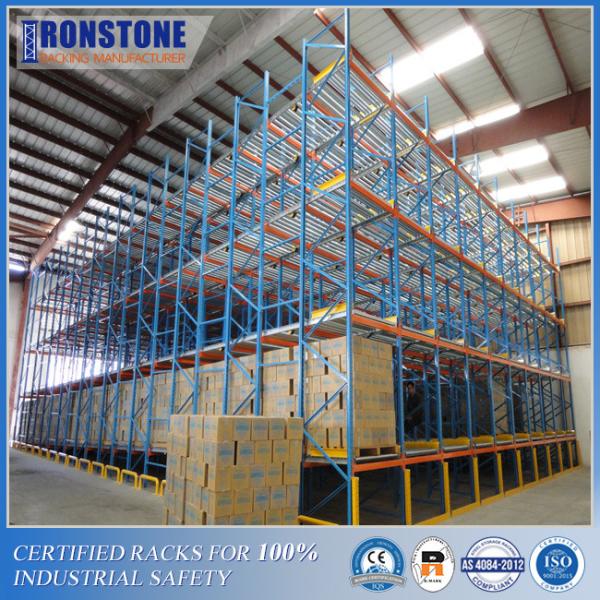

Customer Cases Designed by Ironstone
The goods are deposited from the high end, skidded to the low end,
and removed from the low end. During the sliding of the cargo, a
damper is arranged on the slideway to control the speed of the
cargo to keep it within the safe range. A separator is provided at
one end of the chute, and the handling machine can smoothly take
out the goods at the first board position.
